High Speed Doors

Made with patent-pending designs and durable construction, Wayne Dalton’s line of high speed doors installed by J & R Door features two high speed metal doors for exterior applications, six high speed fabric doors that can be used in interior and exterior applications and one high speed, high cycle rubber door for use in areas with extreme environments. These fast-acting doors have a springless design that requires minimal interruption for maintenance and the fabric doors feature breakaway technology to make doors field repairable.

The following chart can help you determine which Wayne Dalton High Speed Door is best for your specific application. For more information, contact our J & R Door at 740-623-2782 or email us at sales@j-rdoor.com.

Max Width
Max Height
Open Speed
Pressure/Wind Resistance
Application/Material Type

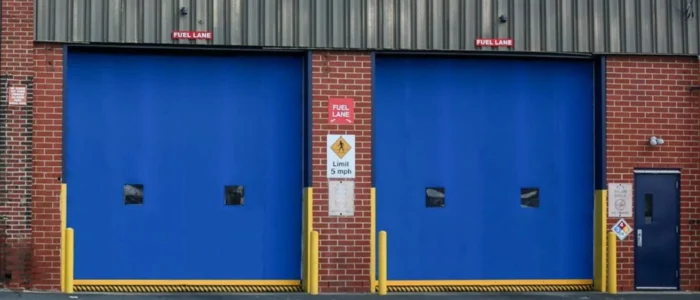

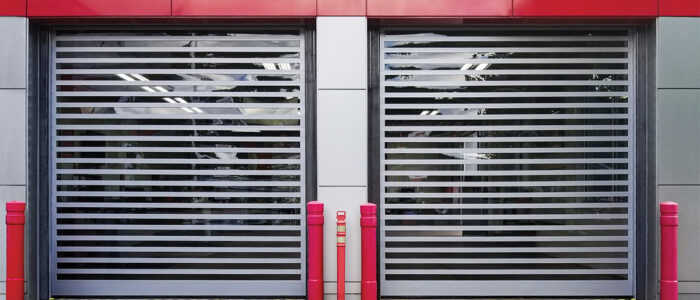

High Speed Metal Door

Model 889
20’ (6,096 mm)
21’ (6,400 mm)
Up to 80” per second
Up to ±50 psf
Exterior/Aluminum and scratch-resistant polycarbonate

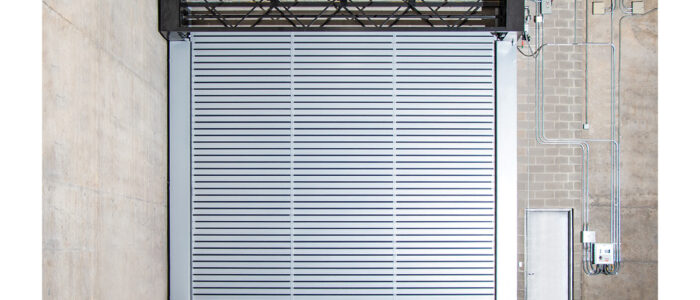

High Speed Metal Door

Model 888
26’ (7,924 mm)
21’ (6,400 mm)
Up to 80” per second
Up to ±100 psf
Exterior/Dual-walled aluminum

High Speed Fabric Interior Door

Model 887

12’ (3,658 mm)

18’ (5,486 mm)

Up to 80″ per second
Up to ±2 psf
Interior/PVC-coated polyester plus radiant insulation

rubber high speed door

Model 885

​30′

​30′

​Up to 50″ per second

​Up to ±​27.0 psf

​Exterior / 5 layers of NBR Rubber with 4 layers of polyester weave​

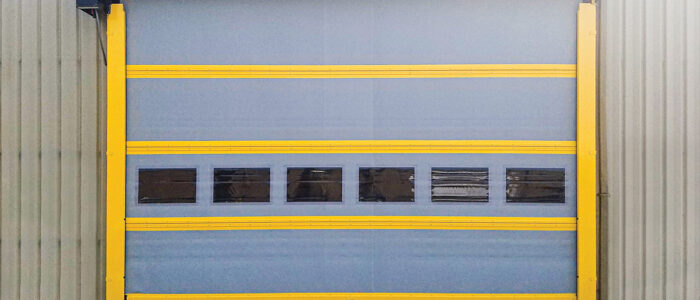

fabric high speed door

Model 884

​24′

​18′ at 24′ wide

or

20′ at 23′ wide

​Up to 55″ per second

​Up to ±​22.0 ​psf

​Exterior / 3 layers of PVC-coated polyester with 2 layers of polyester weave

fabric high speed door

Model 883

​16′

15’​

Up to 65″ per second

​Up to ±​4.0 psf

Exterior / 3 layers of PVC-coated polyester with 2 layers of polyester weave

fabric high speed door

Model 882

​16′

​15′

​Up to 65″ per second

​Up to ±​4.0 ​psf

​​Interior / 2 layers of PVC-coated polyester with 1 layer of polyester weave​

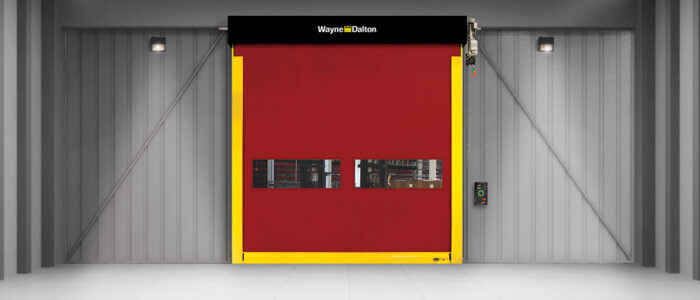

fabric high speed door

Model 881

​14′

​14′

​Up to 70″ per second

​Up to ±​7.5 psf

​Interior / 2 layers of PVC-coated polyester with 1 layer of polyester weave

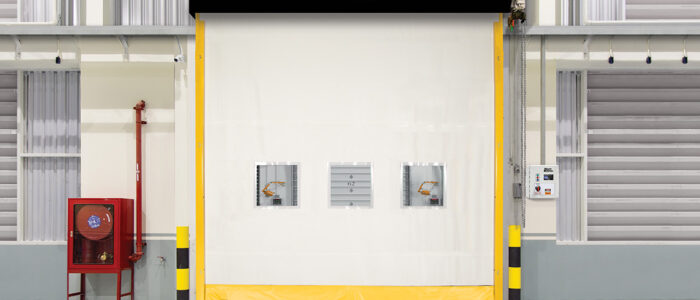

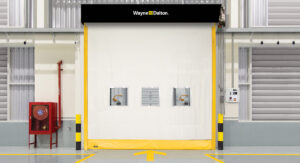

fabric high speed door

Model 880

​​12′

​​12’​

​Up to 70” per second

​Up to ±3.0 psf

​Interior / 2 layers of PVC-coated polyester with 1 layer of polyester weave​



Contact us for more information. 740-623-2782.
